MAIN > PRODUCTS > 4-AXES Filament Winding Machine

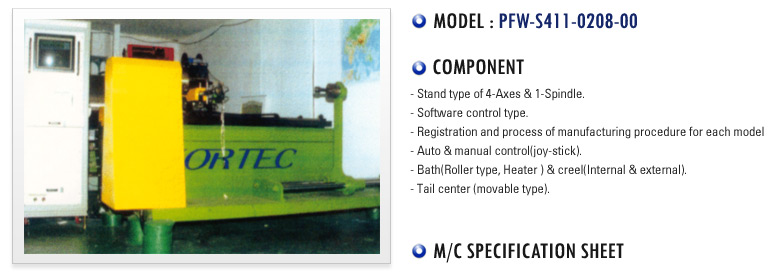

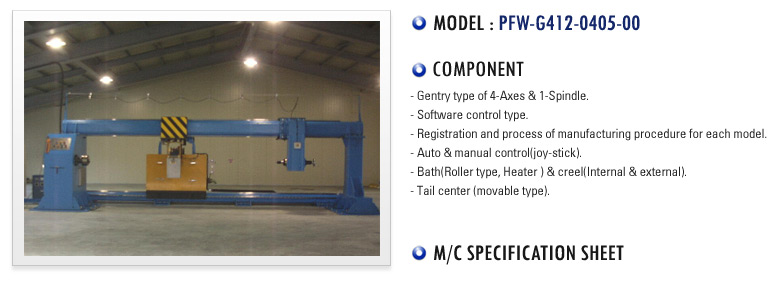

DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 800

mm

-

Winding Length

2000

mm

-

Weight of Mandrel

 200

kg

-

No. of Spindle

1

per

-

Height of Spindle

900

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

4

axis

 -

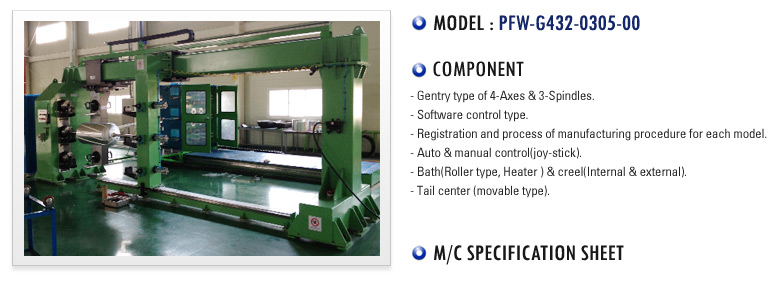

DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 450

mm

-

Winding Length

3000

mm

-

Weight of Mandrel

 200

kg/per

-

No. of Spindle

3

per

-

Height of Spindle

500

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

4

axis

 -

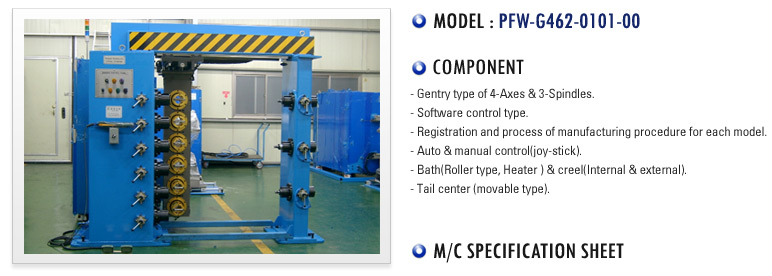

DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 200

mm

-

Winding Length

550

mm

-

Weight of Mandrel

 50

kg/per

-

No. of Spindle

6

per

-

Height of Spindle

300

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

4

axis

 -

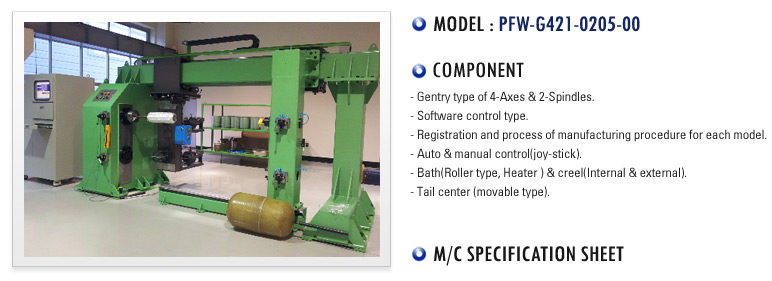

DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 550

mm

-

Winding Length

2000

mm

-

Weight of Mandrel

 200

kg/per

-

No. of Spindle

2

per

-

Height of Spindle

600

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

4

axis

 -

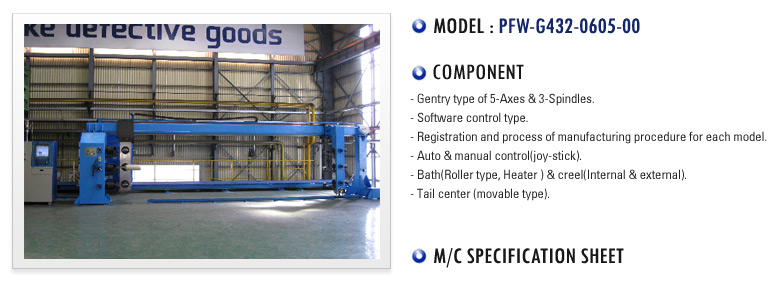

DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 500

mm

-

Winding Length

6000

mm

-

Weight of Mandrel

 500

kg/per

-

No. of Spindle

3

per

-

Height of Spindle

530

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

5

axis

 -



DESCRITION

 SPECIFICATION UNIT REMAKE

Winding Diameter

 500

mm

-

Winding Length

3500

mm

-

Weight of Mandrel

 200

kg/per

-

No. of Spindle

3

per

-

Height of Spindle

6000

mm

-

Winding Angle

0/89 ¡Æ

deg

-

No. of Axis

4

axis

 -
